Polyester Expandable Sleeving

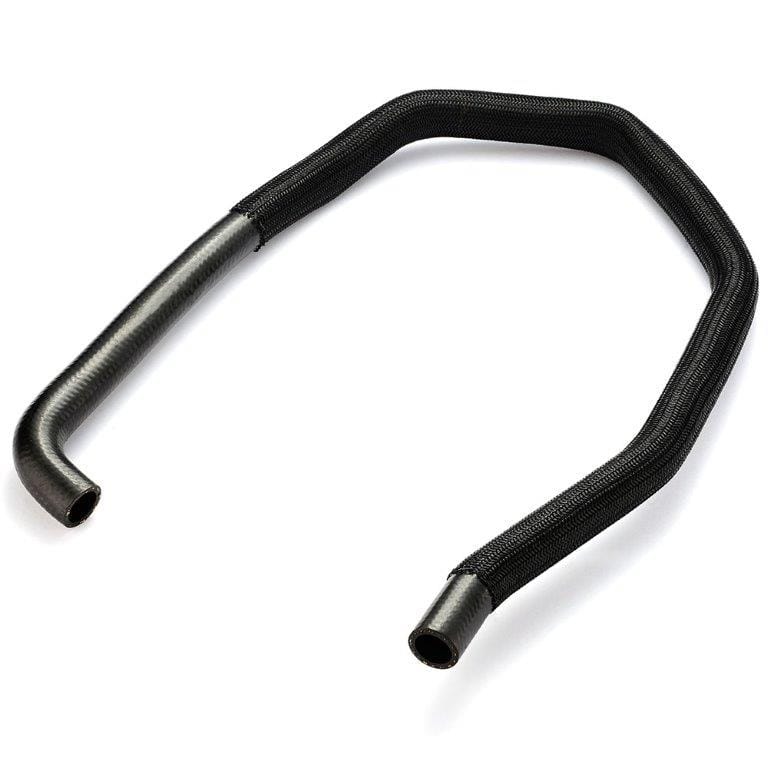

Polyester Expandable Sleeving - Image 2

Polyester Expandable Sleeving

KOG-JDD-FR Polyester expandable sleeving is flame retardant and halogen-free. It offers durable abrasion resistance in a wide range of industrial application. The open weave construction allows an easy installation on a bundle of hoses and cables, even if some with bulky or large connectors. The totally expanded sleeving can reach at least 1.5 times the initial dimension.

Application

It is used for covering cables, wire harnesses, tubes, industrial hoses where is required an additional protection.

Categories: , , ,

Description

Datasheet

Part No.

Nominal size (W)

Expanded range

Packing (L)

Inch

mm

Min.(I)

Max.(O)

Standard spool
(m)

FR-003

1/8”

 3 1 5 500

FR-006

1/4”

 6 3 8 500

FR-008

5/16”

 8 5 10 350

FR-010

3/8”

 10 7 12 350

FR-012

1/2”

 12 8 14 300

FR-016

5/8”

 16 10 18 250

FR-019

3/4”

 19 14 23 200

FR-025

1”

 25 18 28 200

FR-032

1-1/4”

 32 20 35 150

FR-038

1-1/2”

 28 30 42 100

FR-045

1-3/4”

 45 35 48 100

FR-050

2”

 50 40 54 100

FR-064

2-1/2”

 64 45 70 100

FR-076

3″

 76 64 80 100

Unit: mm

Technical data

Materia

Polyester

Operating range

-50°C-+150°C

Melt point

240±10°C

Flammability

VW-1

Standard colour

Black, Grey

Certificate

UL, RoHS, REACH, Halogen free

Cutting tool

Hot knife
